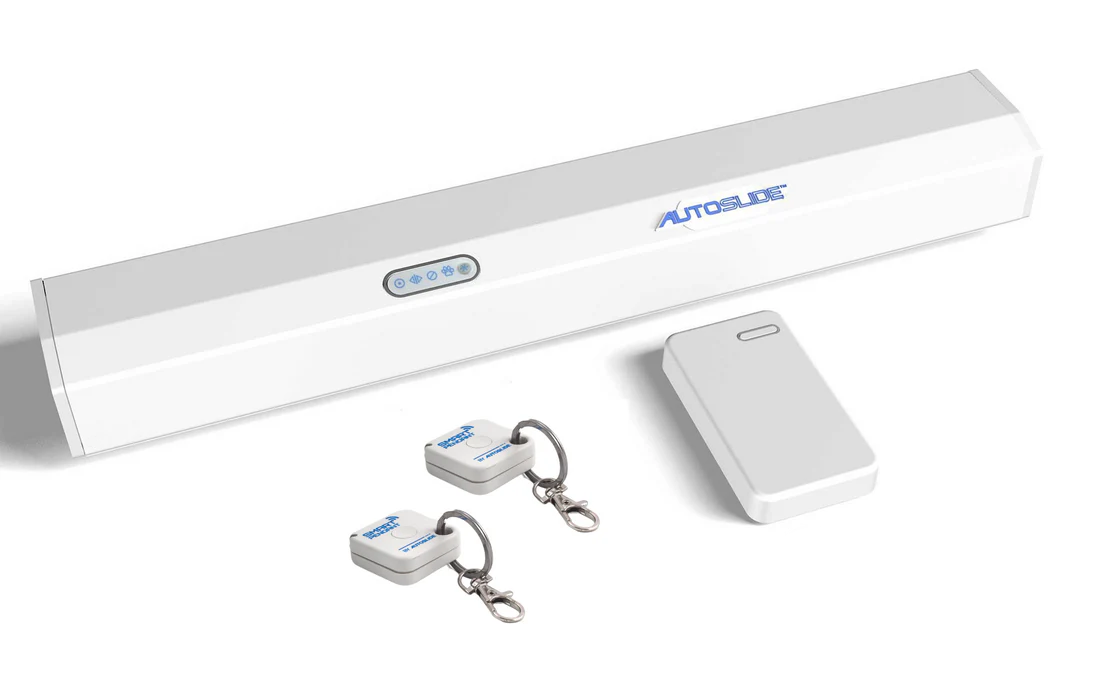

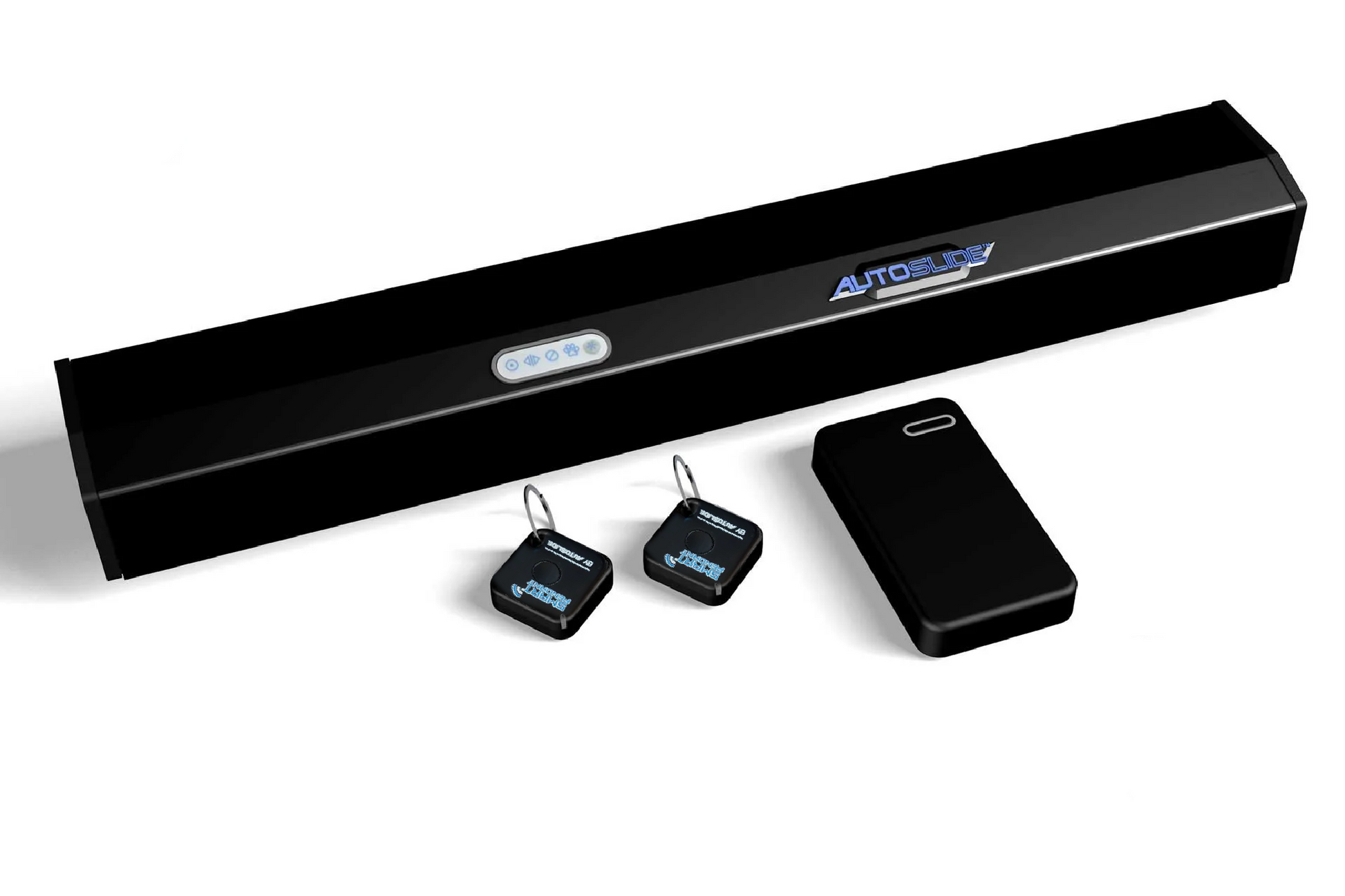

AutoSlide ADA Door Opener

The AutoSlide ADA Door Opener comes with all the components needed to turn a manual sliding door into an  automatic, handsfree door.  Adding in the RFID iOpen tag technology, this automatic door operator will provide increased accessibility to allow all levels of mobility to access your living space.

The AutoSlide ADA Door Opener, when integrated with iOpen tags, offers a cutting-edge solution for enhancing accessibility in various settings. Designed to automate the opening and closing of sliding doors, the door system ensures that individuals with limited mobility can easily navigate spaces without the need for physical exertion. The iOpen tags further elevate this experience by providing a hands-free operation, allowing doors to automatically respond to the presence of the user. These tags can be carried in a pocket, worn as a lanyard, or attached to a wheelchair, making them versatile and user-friendly for people of all ages and abilities.

By incorporating the AutoSlide System, businesses and homes can create a more inclusive environment that adheres to accessibility standards. This technology simplifies entry and exit. Overall, this innovative combination of automated doors and smart tags represents a significant advancement in accessibility technology, promoting independence and ease of movement for everyone.

Included inside the AutoSlide system's software are four dynamic modes:

1. Unsecured Mode (green light) – This mode allows you to use sensors programmed to the Inside or Outside frequency. The iLock feature will not be engaged in this mode.
2. Hold Open Mode (blue light) – This mode allows you to either have your sliding door stay open until the mode is switched or to operate the door in a toggle fashion (push button to open/push button to close). Only sensors programmed to the Hold Open frequency will work in this mode. If you have the iLock feature equipped, the lock will be engaged in this mode.
3. Secure Mode (red light) – This mode allows you to operate the door normally using sensors programmed to the Inside frequency. Use Red Mode when you want to lock your doors manually, or upgrade to the iLock feature, and the lock will be engaged in this mode.
4. Pet Mode (orange light) – This mode is designed to be used with Autoslide’s pet sensors (not included with this system). The door width can be programmed to open to a shorter width when activated by a pet sensor. People can still use the door by using a sensor programmed to the Inside frequency and it will open to the normal width.

Only one iOpen Tag receiver is required per door and plugs into the Inside Sensor port on the AutoSlide System using the included cable. The sensor has a programable range up to 10 feet away. You will want to mount the receiver in the most optimal place. With the iOpen Tag's RFID technology, you won't have trouble detecting the tags inside or outside of the home.
​
The iOpen Tag system can currently handle up to 25 RFID tags.

Note: Autoslide does not assume any responsibility or liability for unwanted people or animals entering the house by following closely behind unknowing person or pets just before the door closes.

Autoslide ADA Door Opener Includes

• One AutoSlide drive system with cover
• One L Mounting Bracket
• Two Wall Mounted Wireless Touch Buttons

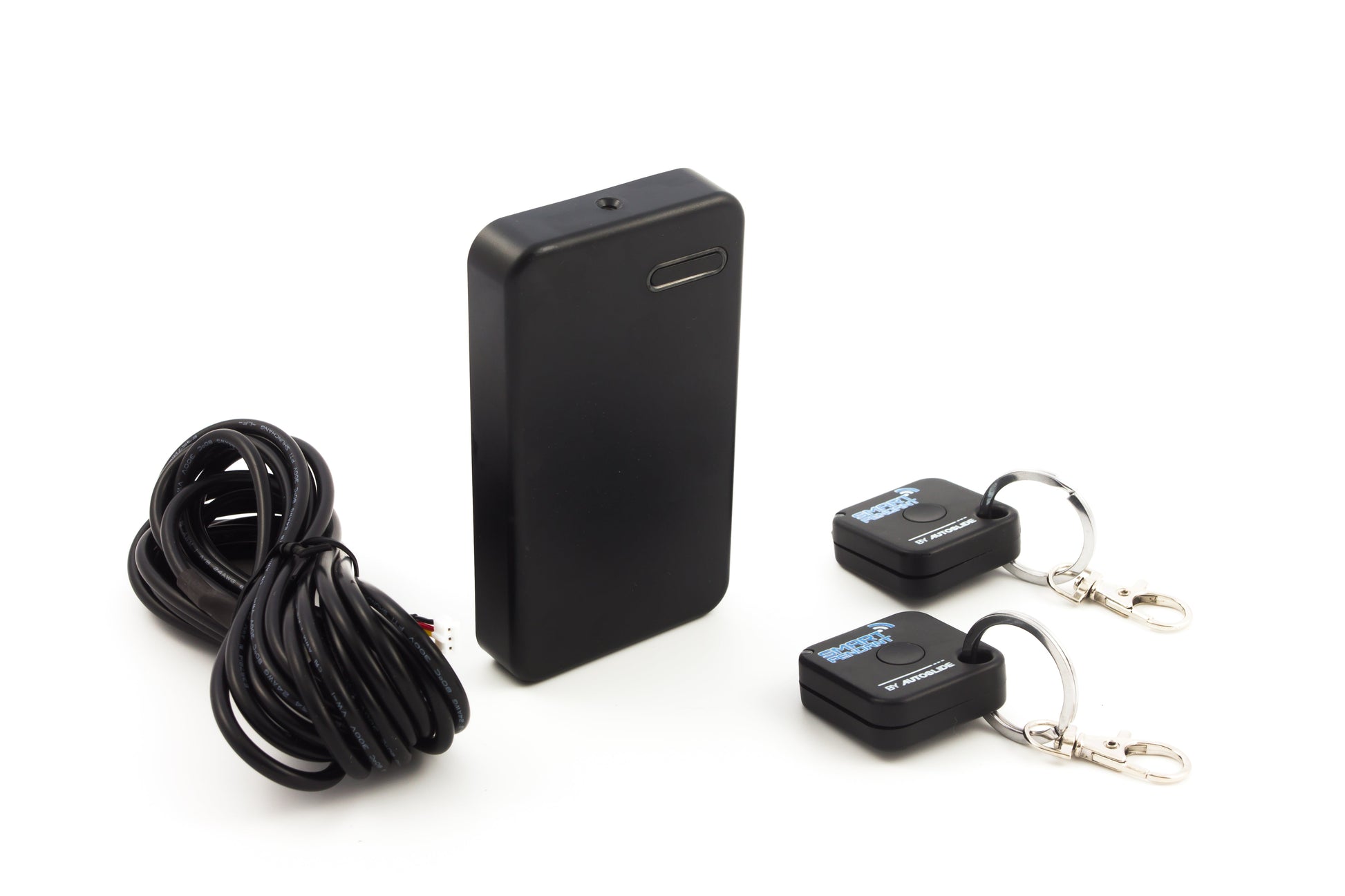

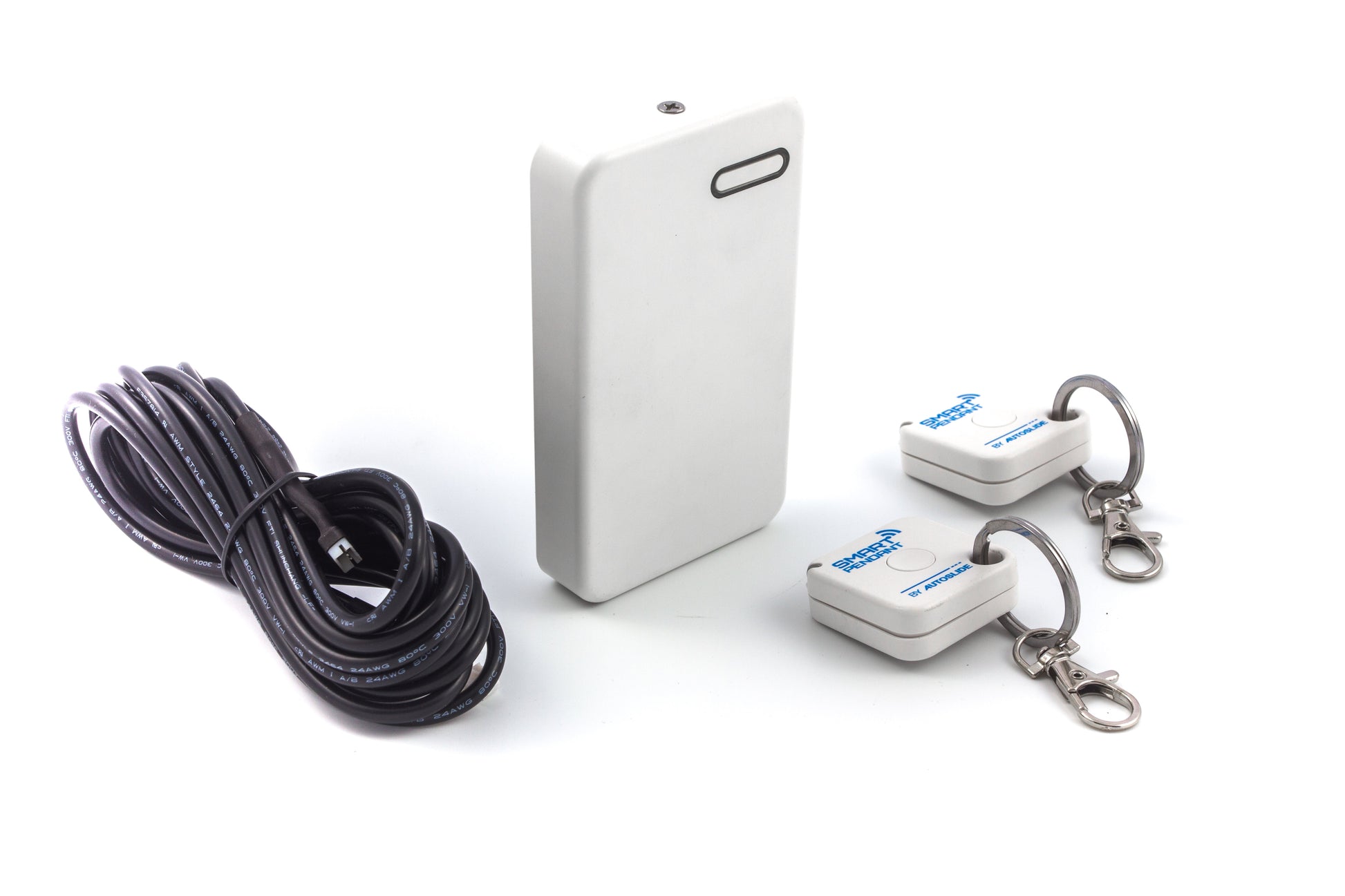

• One iOpen Tag Set (1 x RFID receiver and 2 x iOpen Tags)
• One upgraded power pack
• Two 20" tracks with assembly kit
• Installation screws and tool packet
• Instruction card with QR code

Technical Specifications

Product Code: AS0112IOB (black), AS0113IOW (white)
Maximum Drag Weight: 12 lbs
Available Colors: Black (UPC 608011126353) or White (UPC 608011126360)
Maximum Door Width: 40 inches with included tracks (additional width possible with the purchase of Extension Tracks)
Power Supply: 110-240 VAC, 24 VDC Power Pack
Safety Auto-Reverse: Yes
Automatic Lock: No
Fail-Safe: Yes
Warranty: Two Year

Autoslide Physical Size

Weight: 7 lbs
Length: 19 inches (490mm)
Height: 2.75 inches (70mm)
Width: 2.5 inches (65mm)
