The AutoSlide Elite Automatic Sliding Door System is an upgrade to the original AutoSlide system. This system includes our heavy-duty Elite Motor, which increases the amount of pull force by more than four times. To engage the most power out of the motor, use Dip Switch #7, Heavy Door. This provides the added power needed to move the heaviest doors, such as heavy wind impact patio doors or solid core panels.
The AutoSlide Elite maintains all the same functional attributes as the standard AutoSlide. It attaches universally to residential sliding patio doors, pocket doors, and barn doors. In addition, this system is able to be used in light commercial applications such as doctor offices, conference rooms, and public restrooms to name a few.

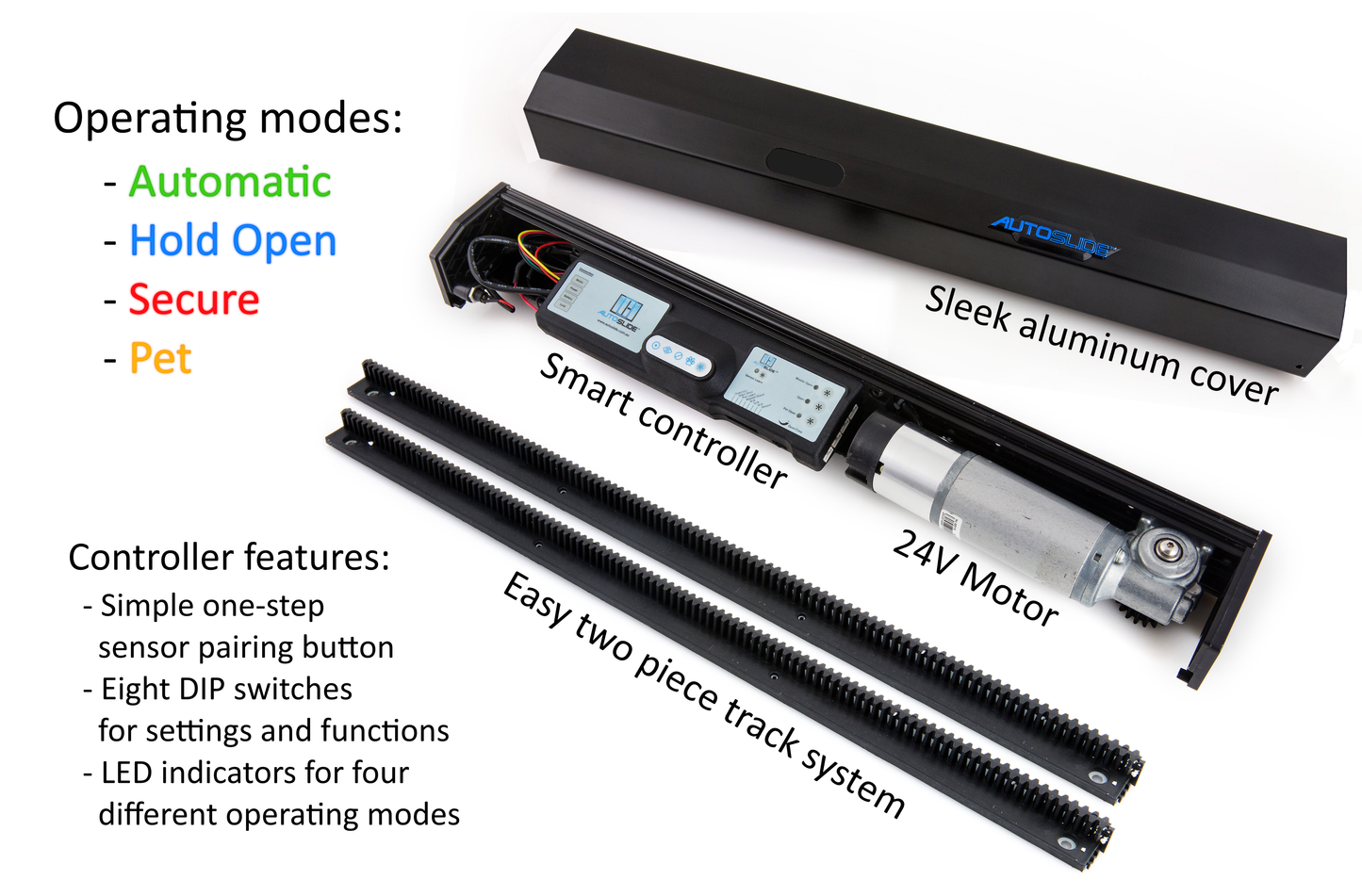

AutoSlide Elite fits into the same compact housing as the standard AutoSlide. The system consists of an Autoslide Elite Motor with an electronic controller, two teethed tracks, and a low-voltage DC power supply that plugs into your nearby standard outlet. This AutoSlide Elite system will move a panel that has up to 55 pounds of drag force, which is the force required to push and pull the door back and forth. This measurement can be tested using a digital fish scale or luggage scale.
The AutoSlide enabled door is activated by the specially designed wall-mounted wireless push-buttons that are installed on both sides of the opening, but alternative activation options, such as motion sensors, are available at an additional cost.
