Autoslide LLC

AutoSlide Elite iLock Automatic Door Security Package

AutoSlide Elite iLock Automatic Door Security Package

Autoslide Elite iLock Security Package Includes

  • One AutoSlide drive system with Elite iLock Motor and aluminum cover
  • Two Wall Mounted Wireless Push Buttons
  • One Wireless Numeric Keypad
  • One low voltage plug-in power pack
  • Two 20" tracks with assembly kit
  • Installation screws and tool packet
  • Virtual instruction booklet
Regular price $1,771.00 AUD
Regular price Sale price $1,771.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color
View full details

Product Descriptions

AutoSlide Elite iLock Description

The AutoSlide Elite iLock Automatic Door System has the extra power needed to automate large and heavy sliding doors. This system uses the AutoSlide Elite iLock Motor, which provides security through an automatic lock and unlock function. To help provide the extra power, an upgraded power supply is provided with increased amperage.

Use the Elite iLock System in Red Mode (Secured) when you don't want unwanted guests entering your home or office. The outside (non-secure) controls will be deactivated, preventing a passerby from opening your door. The Elite iLock Motor will give extra power by enabling Heavy Door Mode, providing up to 25 kg (55 pounds) of pull force.

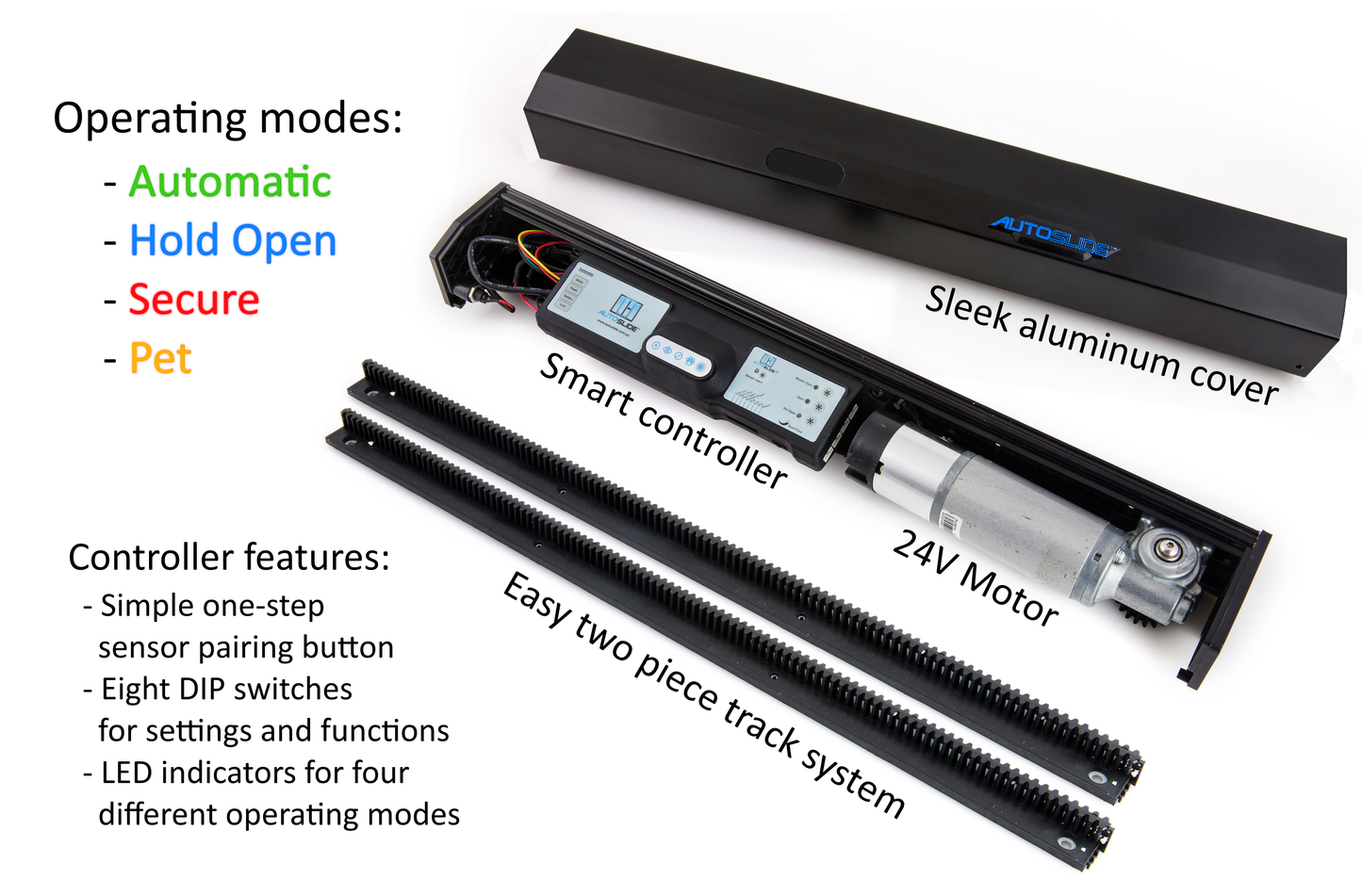

The AutoSlide Elite iLock System was designed to automate heavy sliding patio doors such as the strong wind doors found in Florida. The system consists of an electric Elite iLock Motor with automatic locking technology, an electronic controller, two teethed tracks, and a low-voltage DC power supply encased in an aluminum slimline housing. The door is activated by the specially designed wall-mounted wireless push buttons that are installed on both sides of the opening.

A number of other activation devices, such as motion sensors and remote controls, are available at an extra cost.

How does it works

Elite ilock Modes

Included inside the Autoslide Elite iLock system's software are four dynamic modes:

Unsecured Mode (green light) This mode allows you to use sensors programmed to the Inside or Outside frequency. The iLock feature will not be engaged in this mode.
Hold Open Mode (blue light) This mode allows you to either have your sliding door stay open until the mode is switched or to operate the door in a toggle fashion (push button to open/push button to close). Only sensors programmed to the Hold Open frequency will work in this mode. If you have the iLock feature equipped, the lock will be engaged in this mode.
Secure Mode (red light) This mode allows you to operate the door normally using sensors programmed to the Inside frequency. With the iLock feature equipped, the lock will be engaged in this mode.
Pet Mode (orange light) This mode is designed to be used with Autoslide’s pet sensors (not included with this system). The door width can be programmed to open to a shorter width when activated by a pet sensor. People can still use the door by using a sensor programmed to the Inside frequency and it will open to the normal width.

Technical Specification

Maximum Drag Weight 55 lbs.
Color Black (UPC 647923341393) or White (UPC 647923341409)
Maximum Door Width 38 inches with included tracks (additional width possible with the purchase of Extension Rack)
Power Supply 110-240 VAC, 24 VDC Power Pack
Safety Auto-Reverse Yes
Automatic Lock Yes
Fail-Safe Yes
Warranty 2 year

Physical Dimensions

Weight 6 lbs.
Length 19 inches (490mm)
Height 2.75 inches (70mm)
Width 2.5 inches (65mm)
