AutoSlide Elite iLock Home Mobility Package

The AutoSlide Elite iLock Home Mobility Package allows you to turn manual sliding doors into an automatic door system to increase accessibility. This system also has the Autoslide iLock feature, which provides security through an automatic lock and unlocks function. It provides easy access for those with limited mobility through sliding doors at home or the office.

The AutoSlide Elite iLock System was designed to automate heavy sliding doors such as the hurricane patio doors and insulated thermal doors. The system contains all the components need to automate a single moving panel. The door is activated by the specially designed wall-mounted wireless push-buttons that are installed on both sides of the opening. In addition, this Autoslide system includes two remote control key fobs for easy activation. Set the Autoslide system to Toggle Mode for easier entry and exit through the automatic door with no worries about it closing on someone.

Use the AutoSlide Elite iLock Home Mobility System in the Red Mode (Secured) for safety and to secure your home. While in this mode, your outside sensors are deactivated, but you can still use your remote control key fobs to access your home securely from the outside.

The AutoSlide Elite iLock System can also be used to create an ADA entrance in light commercial applications. Contact us for more information.

The AutoSlide Elite also includes an internal Bluetooth module for app control within up to 100' of the door. A variety of other activation devices, such as proximity tags and motion sensors, are available at an extra cost.

AutoSlide Elite Home Mobility Package Includes

• One AutoSlide drive system with Elite iLock Motor and aluminum cover
• Internal Bluetooth Module for control via Autoslide app (within 100')
• Two Wall Mounted Wireless Push Buttons

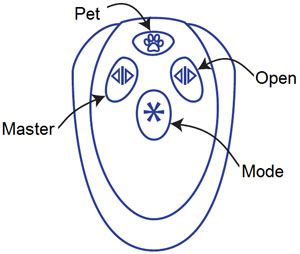

• Two Remote Control Four Button Key Fobs
• One low-voltage plug-in power pack
• Two 20" tracks with assembly kit
• Installation screws and tool packet

• Virtual instruction booklet

Technical Specifications

Product Code: ASE07CBBE (black), ASE08CBWE (white)
Maximum Drag Weight: 35 lbs.
Color: Black (UPC 647923341430) or White (UPC 647923341447)
Maximum Door Width: 40 inches with included tracks (additional width possible with the purchase of Extension Rack)
Power Supply: 110-240 VAC, 24 VDC Power Pack
Safety Auto-Reverse: Yes
Automatic Lock: Yes
Fail-Safe: Yes
App Control: Internal Bluetooth Module
Warranty: 2 year

Autoslide Physical Size

Weight: 6 lbs.
Length: 19 inches (490mm)
Height: 2.75 inches (70mm)
Width: 2.5 inches (65mm)
